Tube Leak Detector


Tube Leak Detector
Catalogue

Features

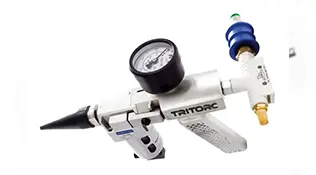

  • This vacuum Tube Leak Detector VLD-3000 simple & accurate method of testing leakages in the tubes of Boiler, Condenser, Heat-Exchanger, Chiller, Cooler, etc.
  • Only one tool necessary for testing multiple tube sizes
  • Compact Tool for checking the tubes for leakage before insertion in tube plate.
  • Simple Design, Light Weight, Quick tube testing. 7 to 8 tubes per minute.
  • Interchangeable Seals for I.D. 10.35mm To 30.65mm.
  • Silent while testing.
  • Built-in easy to read vacuum gauge.
  • Multifield exhaust for quiet operation.
  • Lightweight and easy to use.
Tube OD Range Model Range
1/4" to 3" T-760, 1250, 2000, 3000

Tube to TubeSheet Joint Testing Kit Specification

Part No. Tube O.D. Size
T - 760 1/4” (6.3mm) - 3/4” (19.5mm)
T - 1250 5/8” (15.9mm) - 1.1/4” (31.7mm)
T - 2000 1.1/8” (28.6mm) - 2” (50.8mm)
T - 3000 1.7/8” (47.6mm) - 3” (76.2mm)
