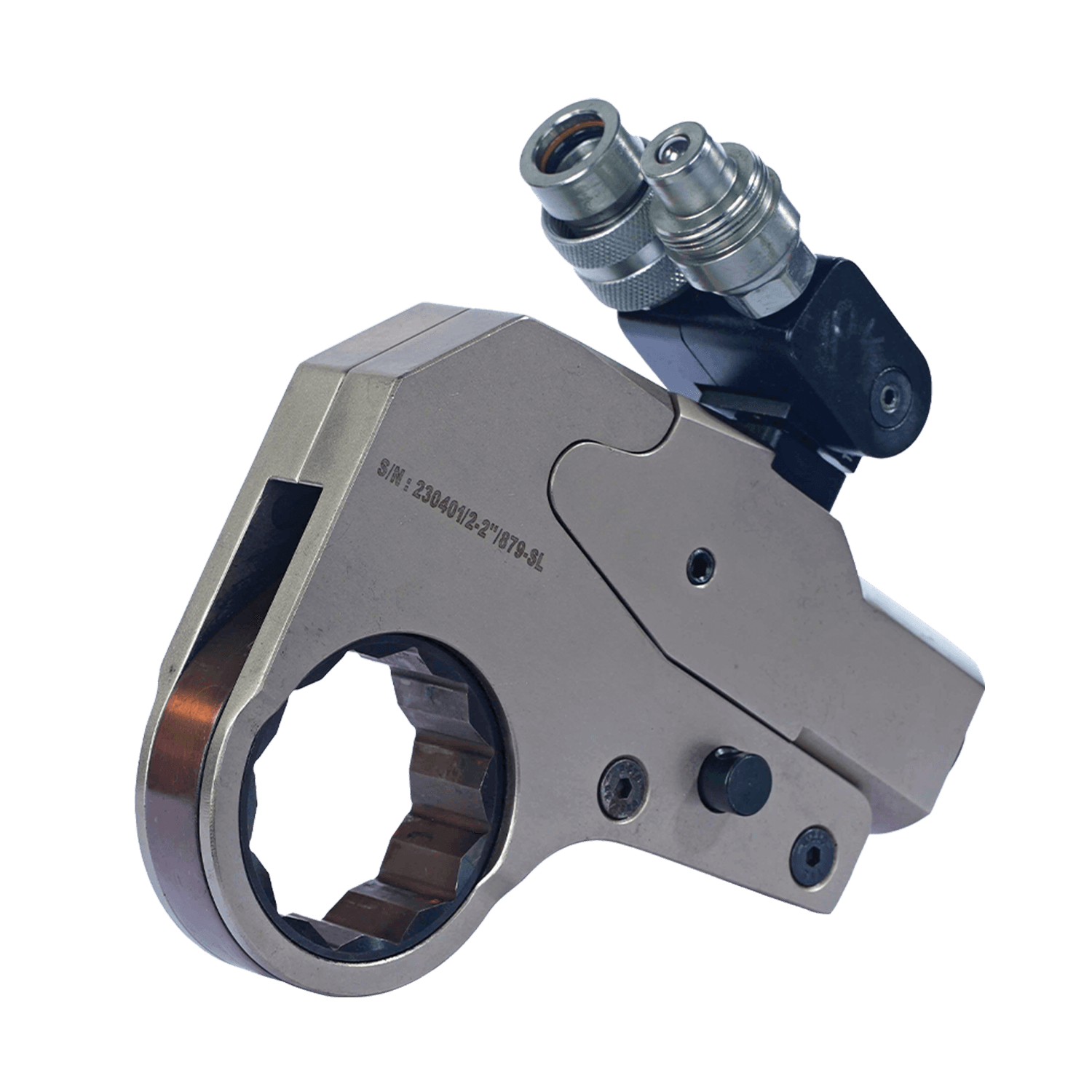

Low Profile Ultra Slim, Hex. Type Hydraulic Torque Wrenches — THL Series


Square Drive Hydraulic Torque Wrench

In tight, hard-to-reach spaces, ordinary torque wrenches fall short. The THL Series Ultra Slim Hex Drive Hydraulic Torque Wrench is specifically crafted to excel where clearance is minimal but precision and power are non-negotiable. Its sleek design combined with robust torque capabilities ensures seamless operation even in the most confined industrial settings.

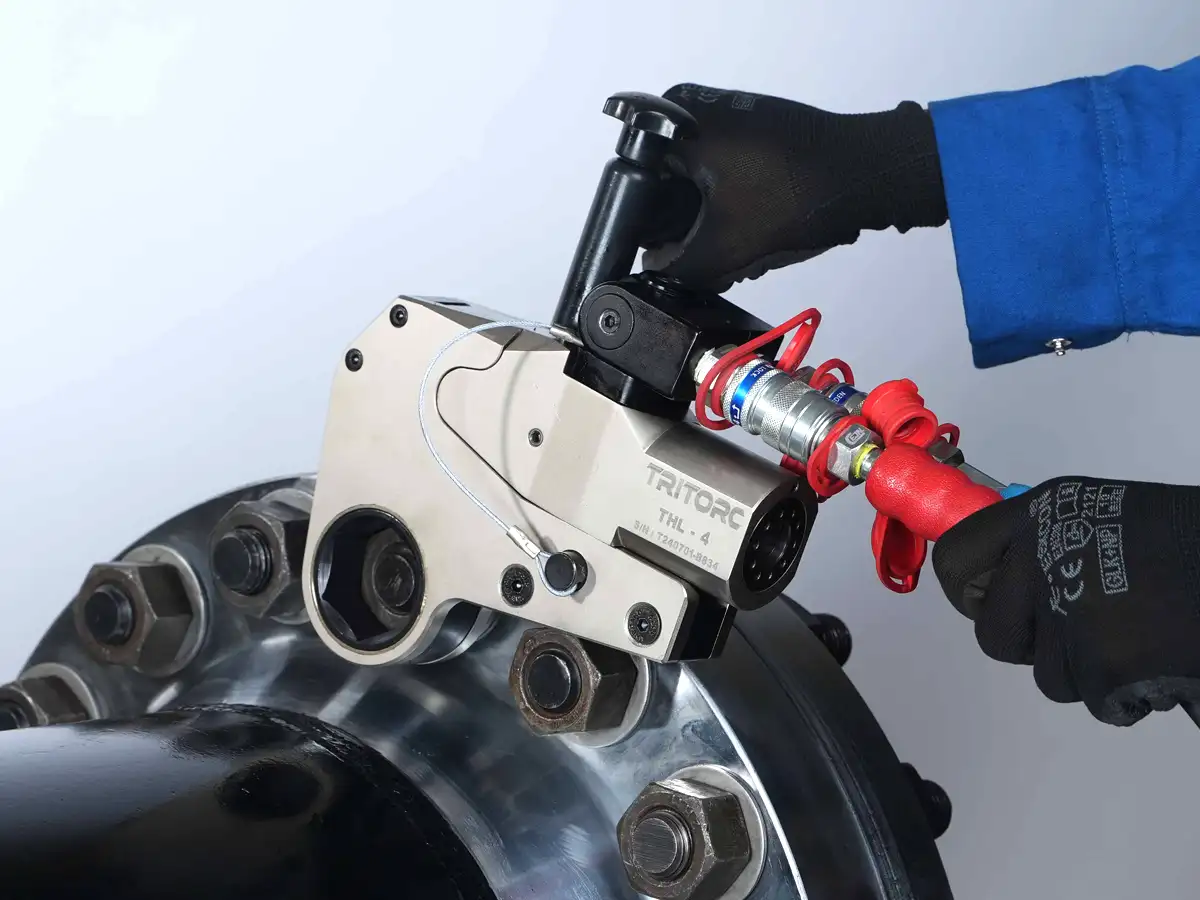

  • Allows easy access to bolts where standard low-profile wrenches cannot fit, making the ultra-slim, low-nose-radius design ideal for applications like BOP X-mas Trees and compact flanges.

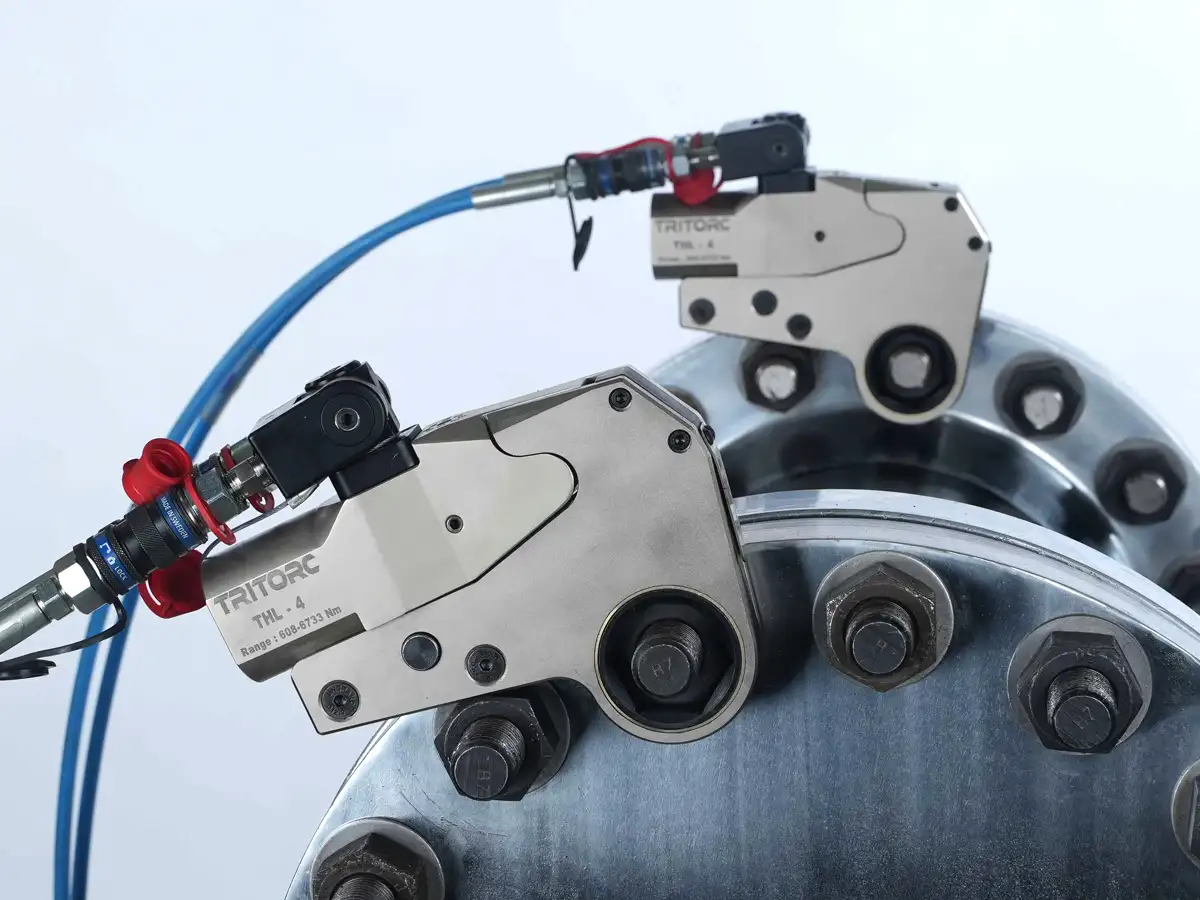

  • Eliminates operator fatigue and inconsistent torque through fine-tooth ratchet and pawl mechanism on jobs maintaining better accuracy across cycles.
  • Achieve hassle free engagement cutting down setup time while avoiding misalignment errors through our precision engineered spline-based reaction arm design.
  • Enables smooth wrench maneuverer even in dense piping or critical torque positioning angles with 180 x 360° completely flexible swivel hose connection.
  • Abate pressure fluctuations and inconsistent torque delivery from precision-machined cylinder bore and reinforced end cap ensuring every piston stroke delivers uniform and reliable torque.
  • Maximum torque up to 53,512 Nm.
  • Handles 19 to 175 mm Bolt Sizes.
  • Designed as per ANSI B 16.3 Standards.
  • Designed as per API Specifications
Download Catalogue

Why Use Tritorc's Low Profile Hydraulic Torque Wrench


01 / 07

Cold worked cylinder bore

The cylinder bore is cold-worked to refine the metal’s crystal structure, enhancing surface hardness, fatigue resistance, and finish quality. This treatment ensures smooth piston motion and long-term performance under continuous heavy-duty torque cycles ideal for repetitive bolting in space-restricted environments.

THL Ultra Slim Series

Tool Specifications

Professional torque tools for industrial applications. Select a model to view detailed specifications and technical drawings with precise measurements.

Metric
Imperial
L
174 mm
H
142 mm
R
11.5 mm

Technical Drawing

Technical Drawing of THL-4
HEX A/F
65 mm
WT
49.5 mm
WL
28.7 mm
443 Nm
Min Torque
4891 Nm
Max Torque
4.3 Kg
Weight

Need help selecting the right tool for your application?

CONTACT OUR EXPERTS >

More Products

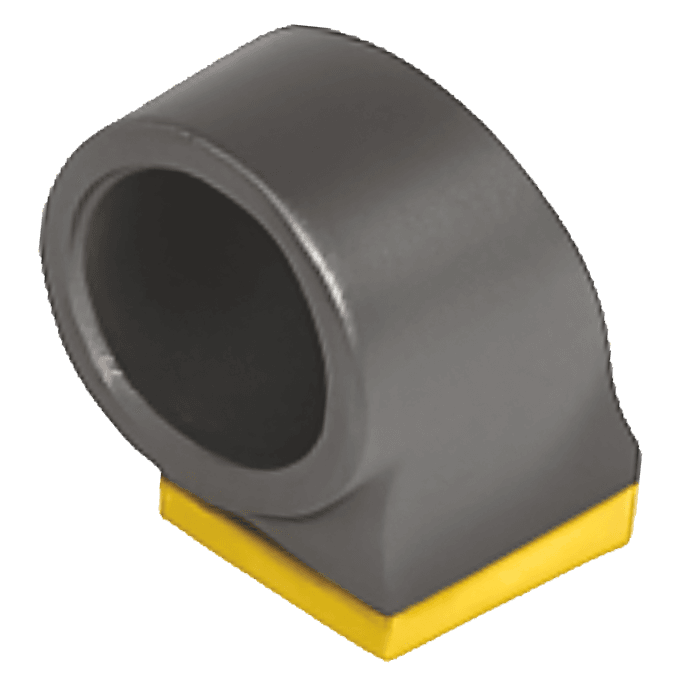

Reaction Arm

Reaction Arm

Provides robust counterforce during torque application, ensuring safe and stable operation on high-load bolting tasks.

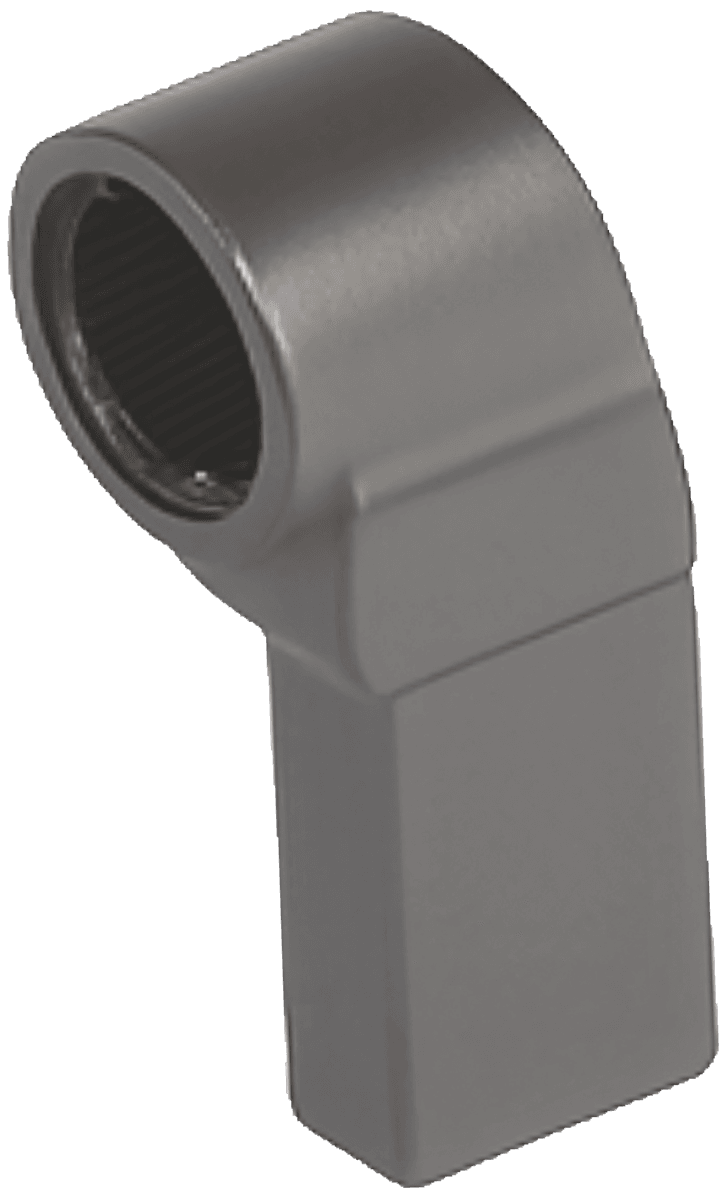

Extended Reaction Arm

Extended Reaction Arm

Enables secure torque reaction in challenging or offset positions, expanding tool adaptability for complex assemblies.

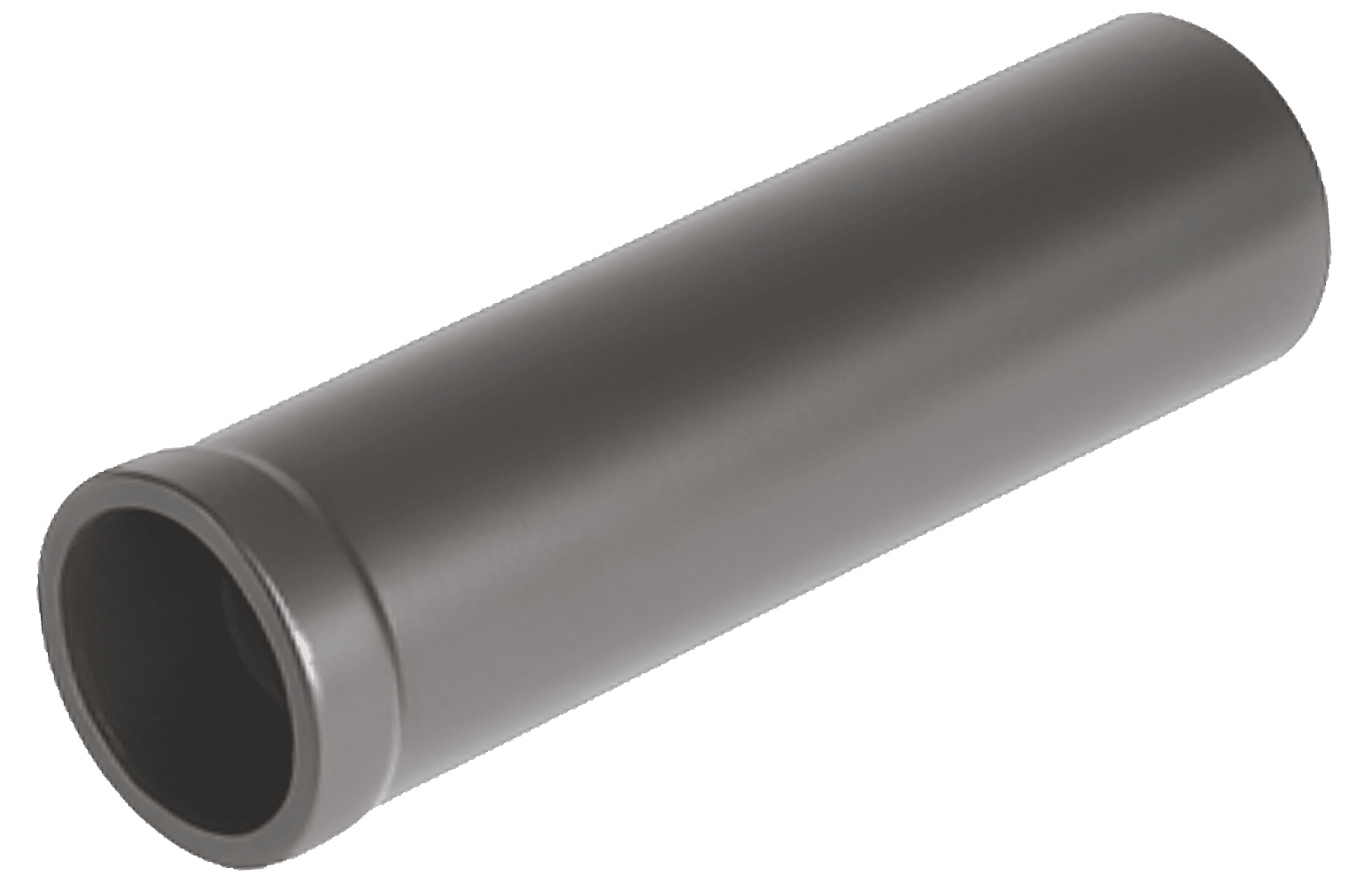

Extended Reaction Tube

Extended Reaction Tube

Offers additional reach and stability for torque applications in deep or obstructed locations, minimizing tool deflection.

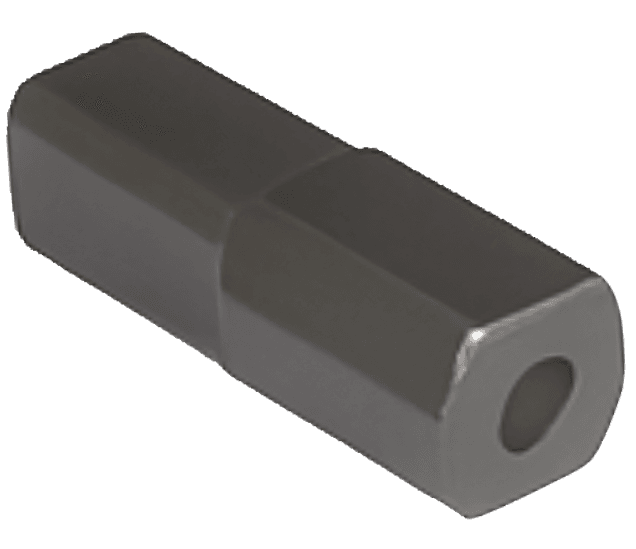

Direct Allen Drive

Direct Allen Drive

Allows direct engagement with Allen (hex) fasteners, delivering precise torque transfer for socket-head bolts.

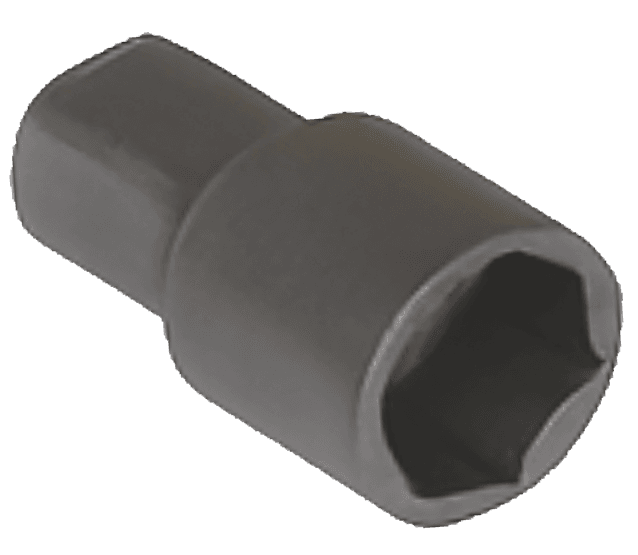

Direct Drive Socket

Direct Drive Socket

Facilitates direct connection to square drive sockets, maximizing torque delivery and minimizing backlash for heavy-duty fastening.

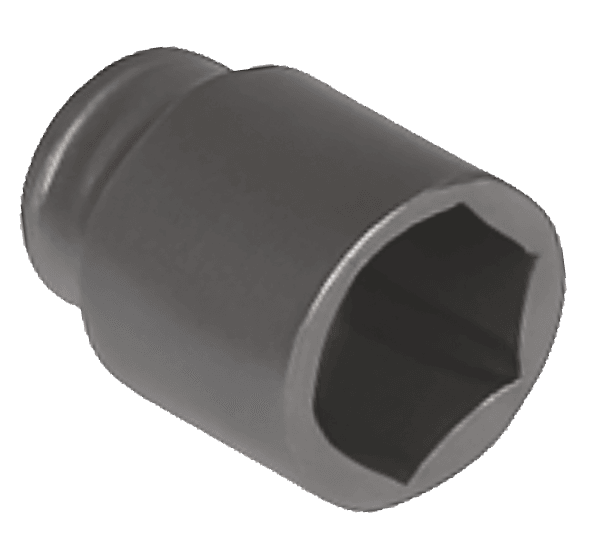

Hexagon Socket

Hexagon Socket

Ensures reliable engagement with standard hex bolts, supporting a wide range of industrial bolting requirements.

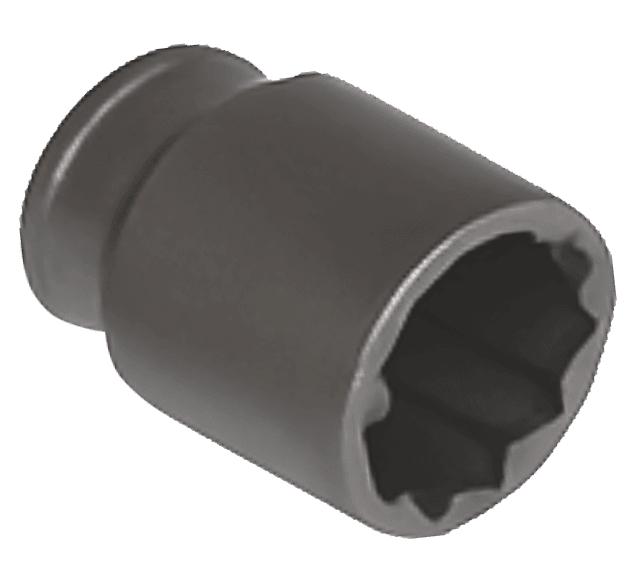

Bi Hex Socket

Bi Hex Socket

Provides enhanced grip and contact on bi-hex (twelve-point) fasteners, reducing the risk of rounding and slippage during high-torque applications.

THL Ultra Slim Series accessories THL Ultra Slim Series accessories are engineered to maximize performance in extreme low-clearance and high-complexity bolting environments. Each component is precision-built for tight-space accessibility, secure fastener engagement, and stable torque reaction.

With interchangeable heads, reducers, adapters, and specialized reaction elements, these accessories extend the wrench’s functionality across varied fastener types and configurations; ensuring safe, efficient, and high-accuracy torque delivery in the most constrained industrial settings.

Right Perspective

Oil & Gas (Onshore & Offshore)

Specially designed for bolting challenges in ultra-tight offshore modules and processing skids where traditional torque tools cannot be accommodated.

Compact Valve Bonnet Flanges
Wellhead & X-mas Tree Flanges
Tight-Access Manifold Joints
Offshore Platform Skid Piping
Heat Exchanger Pass Partitions
Explore Further →
