Square Drive Type Hydraulic Torque Wrenches — TSL Series

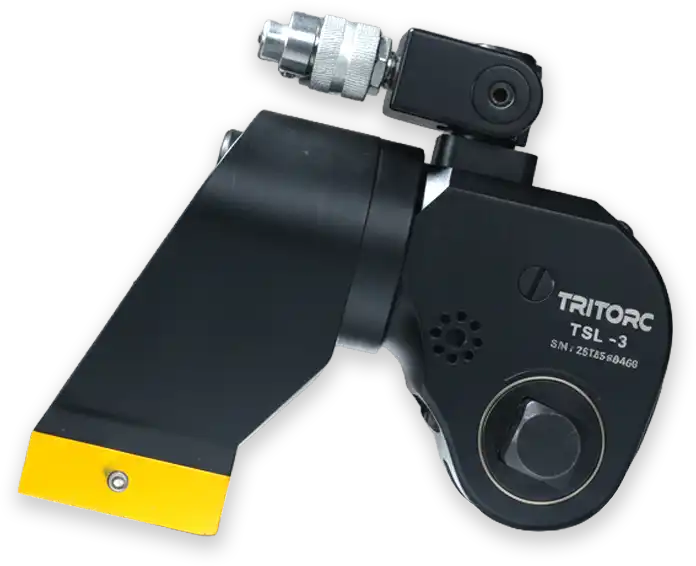

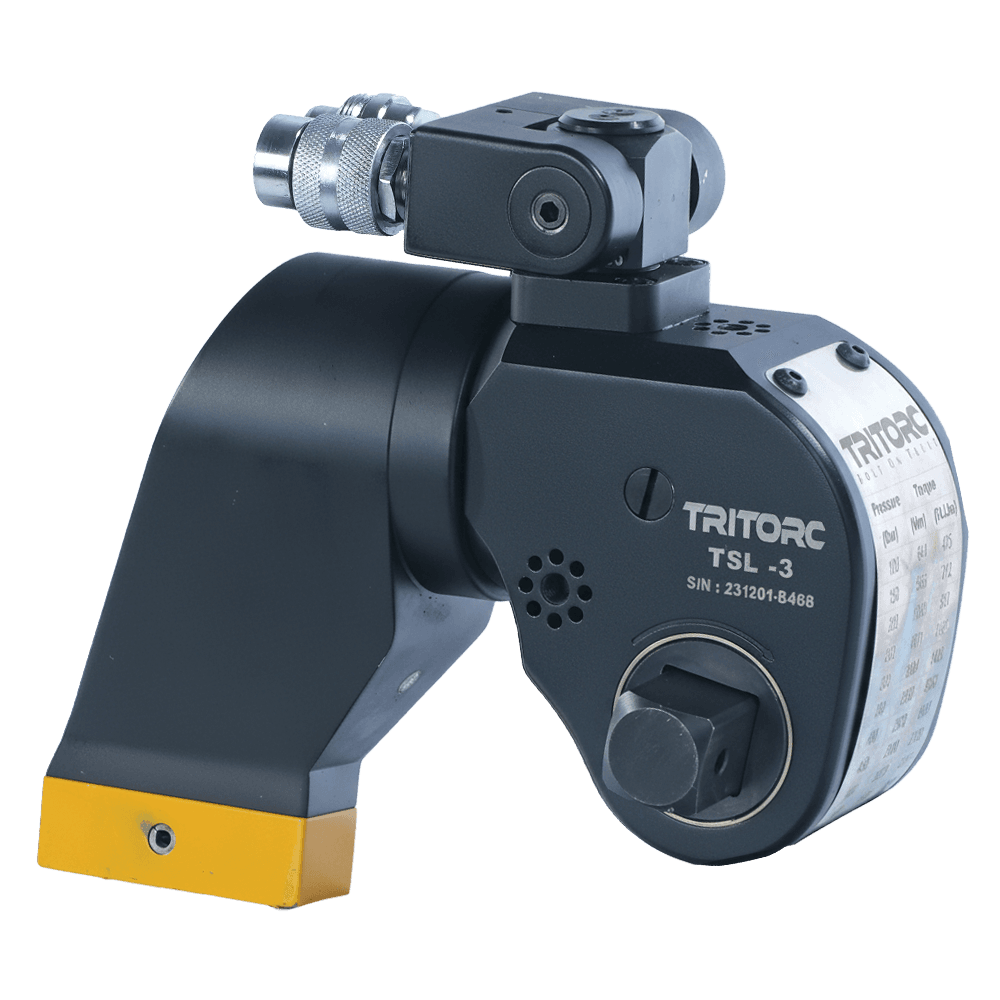

Square Drive Hydraulic Torque Wrench

While considering a torque wrench, we don't just showcase our high-end features. We deliver solution to your operational challenges. Our TSL Series Hydraulic Torque Wrench directly addresses your real-world challenges and delivers measurable outcomes.

  • Allows operators to experience smooth, stress-free torqueing, reducing fatigue and improving efficiency, made possible by our drive mechanism and finer-tooth ratchet-pawl arrangement.
  • Helps eliminate inaccuracies and setup delays during reaction arm positioning, by enabling precise PCD engagement through our spline-based design.
  • Prevents high-pressure leaks that often disrupt work and raise safety concerns through our leak-resistant seal system supported by precision-engineered brass bushings.
  • Supports smooth and consistent piston movement without performance dips, by maintaining optimal back pressure through our high-pressure endcap and pressure cylinder assembly.
  • Enables smooth and multi-directional handling of wrench in confined areas, through our 360×180° swivel design.
  • Handles 19 to 175 mm Bolt Sizes.
  • Delivers up to 69,247 Nm Torque.
Download Catalogue

Why Use Tritorc's Low Profile Hydraulic Torque Wrench


01 / 10

Wear Resistant Piston Rod

The piston rod is a hard chrome plated component, which makes sure that the rod seal does not wear out easily.

TSL Series

Tool Specifications

Professional torque tools for industrial applications. Select a model to view detailed specifications and technical drawings with precise measurements.

Body Length
L1
178 mm
Overall Length
L2
228 mm
Tool Radius
R1
34.5 mm
Reaction Reach
R2
111 mm

Technical Drawing

Technical Drawing of TSL-3
Tool Width
H1
69.5 mm
Overall Width
H2
97 mm
Tool Height
H3
127 mm
Overall Height
H4
177 mm
450 Nm
Min Torque
4500 Nm
Max Torque
1"
Square Drive Size
4.9 Kg
Weight

Need help selecting the right tool for your application?

Contact Our Experts >

More Products

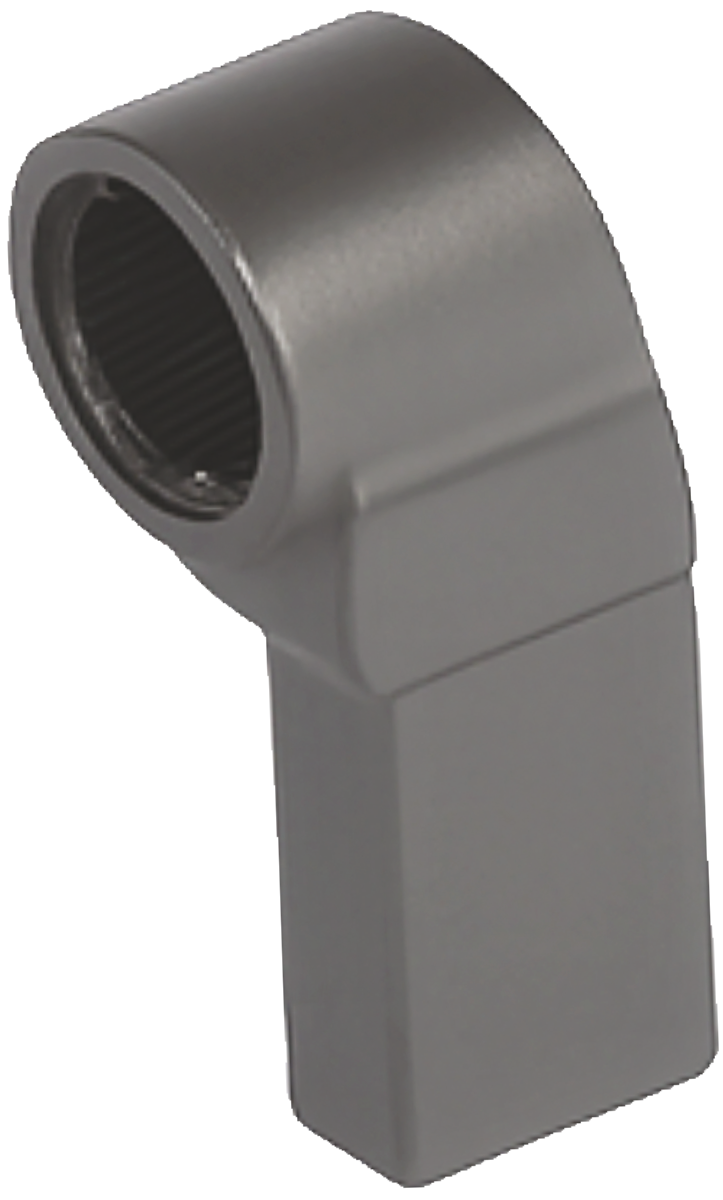

Reaction Arm

Reaction Arm

Provides robust counterforce during torque application, ensuring safe and stable operation on high-load bolting tasks.

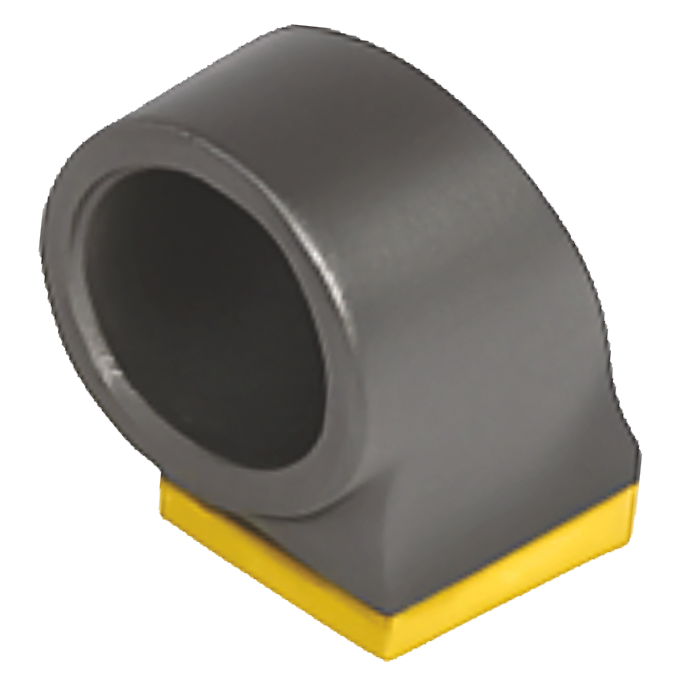

Extended Reaction Arm

Extended Reaction Arm

Enables secure torque reaction in challenging or offset positions, expanding tool adaptability for complex assemblies.

Extended Reaction Tube

Extended Reaction Tube

Offers additional reach and stability for torque applications in deep or obstructed locations, minimizing tool deflection.

Direct Allen Drive

Direct Allen Drive

Allows direct engagement with Allen (hex) fasteners, delivering precise torque transfer for socket-head bolts.

Direct Drive Socket

Direct Drive Socket

Facilitates direct connection to square drive sockets, maximizing torque delivery and minimizing backlash for heavy-duty fastening.

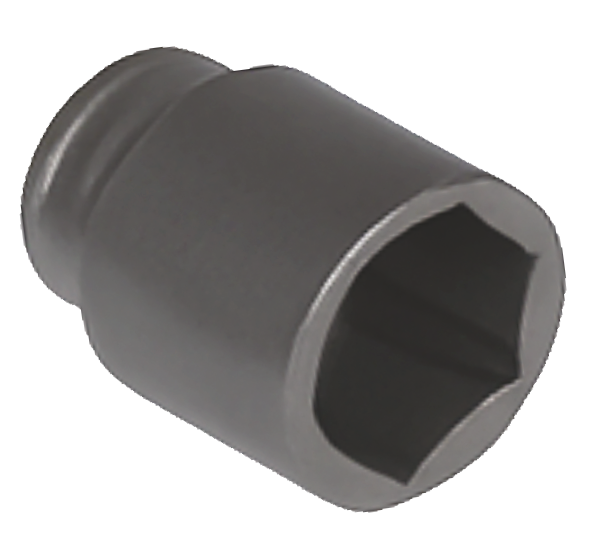

Hexagon Socket

Hexagon Socket

Ensures reliable engagement with standard hex bolts, supporting a wide range of industrial bolting requirements.

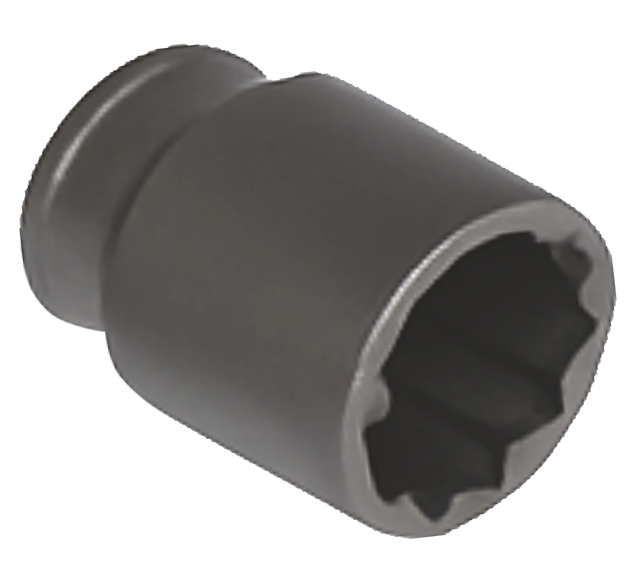

Bi Hex Socket

Bi Hex Socket

Provides enhanced grip and contact on bi-hex (twelve-point) fasteners, reducing the risk of rounding and slippage during high-torque applications.

Engineered to extend tool capability, ensuring secure torque reaction, and adapt to varied bolting conditions, our TSL Series accessories are designed for seamless integration. They provide precise fastener engagement, improved reach, and enhanced stability in critical applications.

From reaction arms to drive adapters and specialized sockets, each component supports safe, efficient, and repeatable torque delivery in demanding industrial environments.

Right Perspective

Oil & Gas (Upstream, Midstream, Downstream)

Purpose-built for extreme-torque flange connections, pressure vessels, and pipeline assemblies under severe process conditions.

Wellhead & X-mas Tree Flanges
Refineries & Petrochemical Plant Flanges
Pipeline Construction & Valve Operations
Offshore Production Skids & Platform Riser Joints
