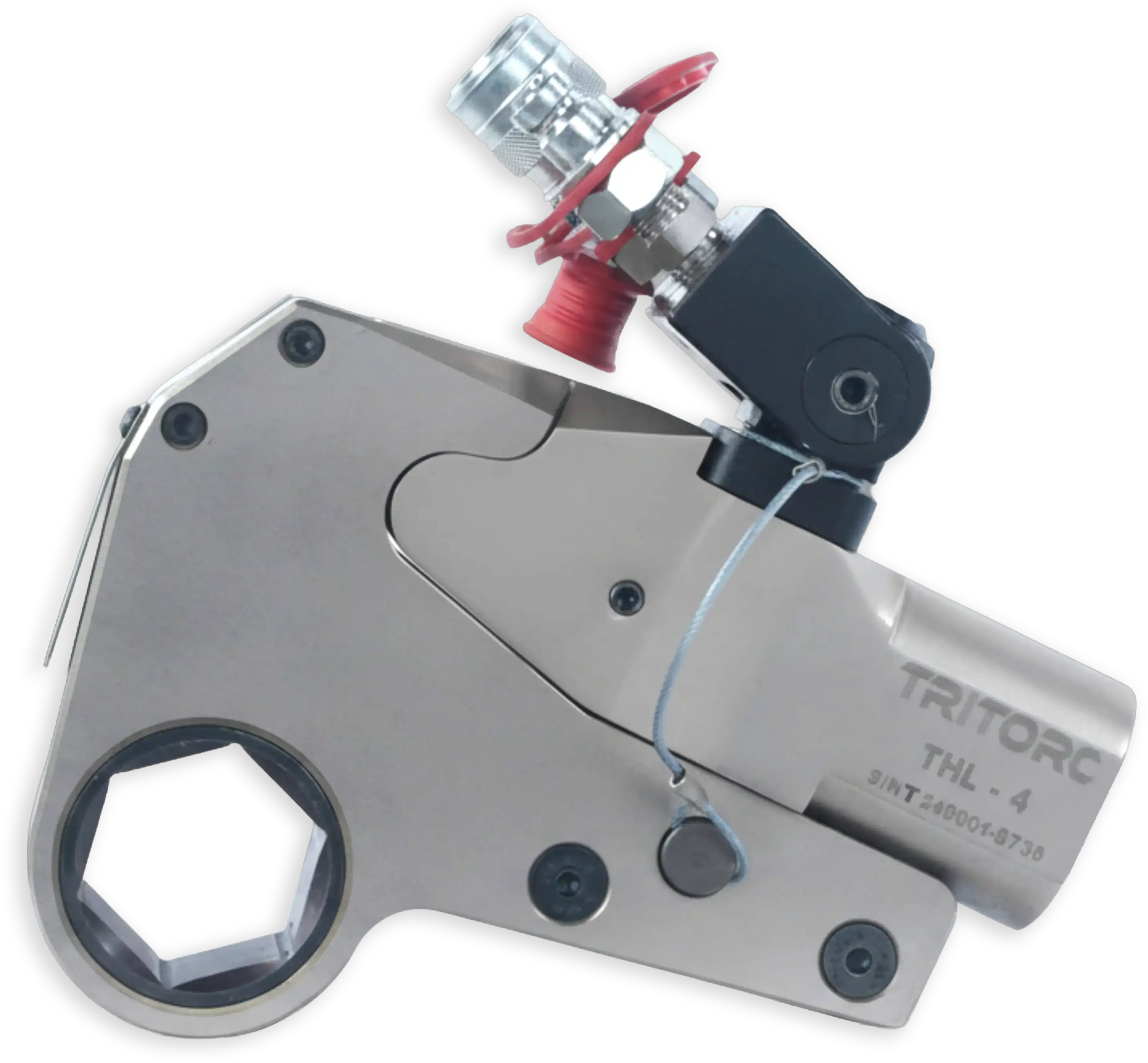

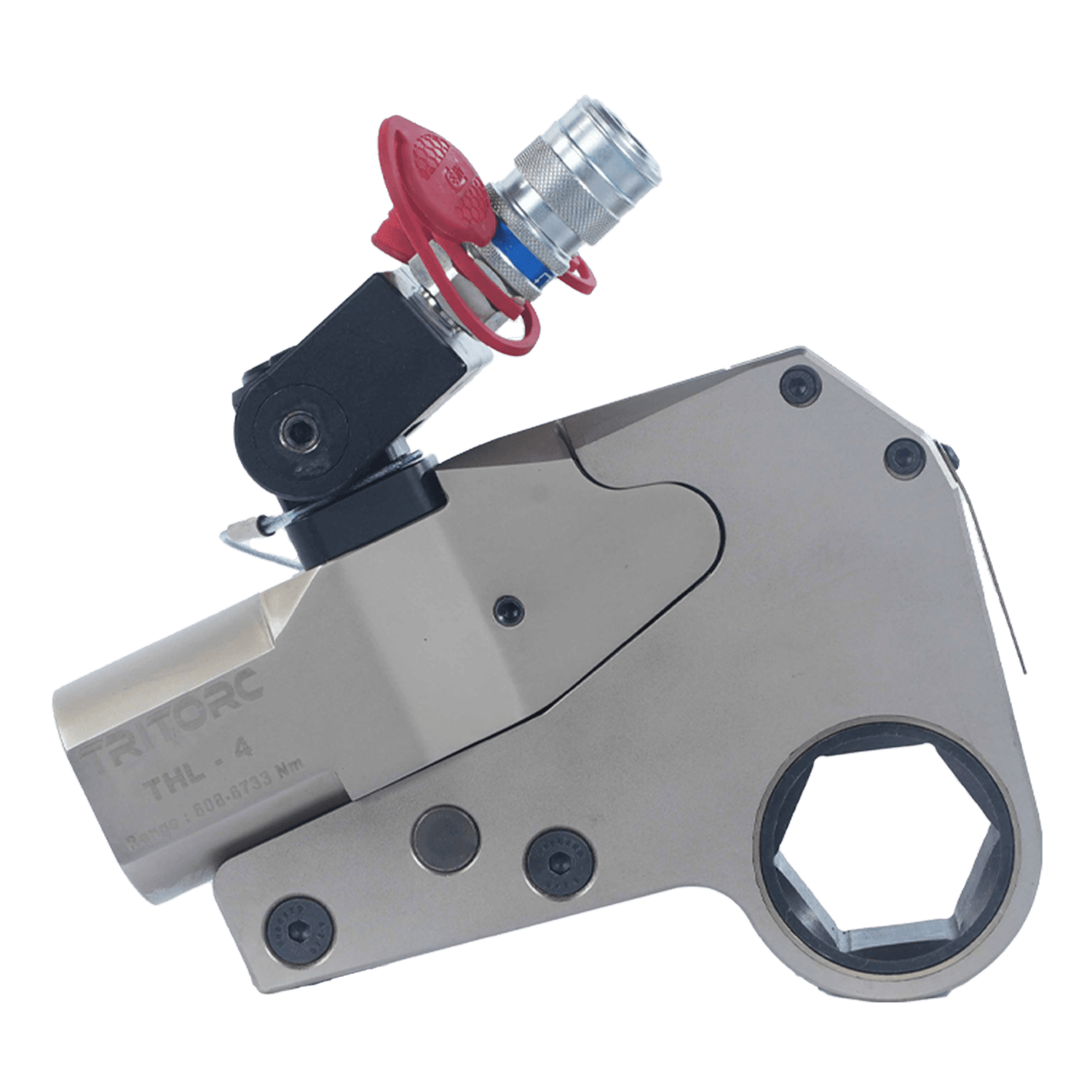

Low Profile Ratchet, Hex. Type Hydraulic Torque Wrenches — THL Series


Square Drive Hydraulic Torque Wrench

At Tritorc, we recognize that your bolting requirements demand more than just torque delivery; you need reliability, precision, and access in the tightest industrial spaces. The THL Series Low Profile Hex Drive Hydraulic Torque Wrench is engineered to directly address these challenges and deliver operational improvements to your workflow.

  • Enables effortless bolting in severely restricted spaces with its ultra-compact, low-nose-radius design and direct hex drive, ensuring access where conventional tools cannot fit.
  • Delivers fatigue-free, high-precision torqueing through a fine tooth ratchet-pawl mechanism and auto-engaging rod, so every stroke is efficient and operator effort is minimized.
  • Eliminates tool jamming and downtime with a never-lock drive pawl and torsion-free reaction pad, guaranteeing smooth, repeatable operation even in continuous heavy-duty cycles.
  • Supports rapid setup and flexible operation with a 360 x 180° swivel joint and quick-release reaction arm, allowing instant adaptation to any bolting scenario.
  • Robust link pin system that enables quick and secure connection between the power head and hex link, streamlining tool changeover and improving operational efficiency.
  • Achieve optimal force transfer delivering consistent torque output while maintaining a lightweight profile utilizing our compact and powerful power head.
  • Maximum torque up to 53,512 Nm.
  • Handles 19 to 175 mm Bolt Sizes.
Download Catalogue

Why Use Tritorc's Low Profile Hydraulic Torque Wrench


01 / 07

Cold worked cylinder bore

The cylinder bore in which the piston travels is cold worked, this ensures that the metal crystal structure allows for continuous heavy-duty use.

THL Series

Tool Specifications


Professional torque tools for industrial applications. Select a model to view detailed specifications and technical drawings with precise measurements.

Hex Range

33 to 56 mm
Overall Length L
202 mm
H1
168 mm
H2
129 mm
Nose Radius Range Q
33 to 46 mm
57 to 80 mm
Overall Length L
218 mm
H1
184 mm
H2
144 mm
Nose Radius Range Q
46 to 60 mm

Technical Drawing

Technical Drawing

Hex Range

33 to 56 mm
R max
10 mm
R max
15 mm
W1
40.6 mm
W2
49.5 mm
57 to 80 mm
R max
13 mm
R max
18 mm
W1
40.6 mm
W2
49.5 mm
Hex Across Flat Size
33 to 56 mm
Torque Range
578 Nm Min Torque
5781 Nm Max Torque
Drive Unit Weight
3.2 Kg
Ratchet Unit Weight
4.1 Kg
57 to 80 mm
677 Nm Min Torque
6733 Nm Max Torque
3.2 Kg
4.1 Kg
Need help selecting the right tool for your application?CONTACT OUR EXPERTS →

More Products

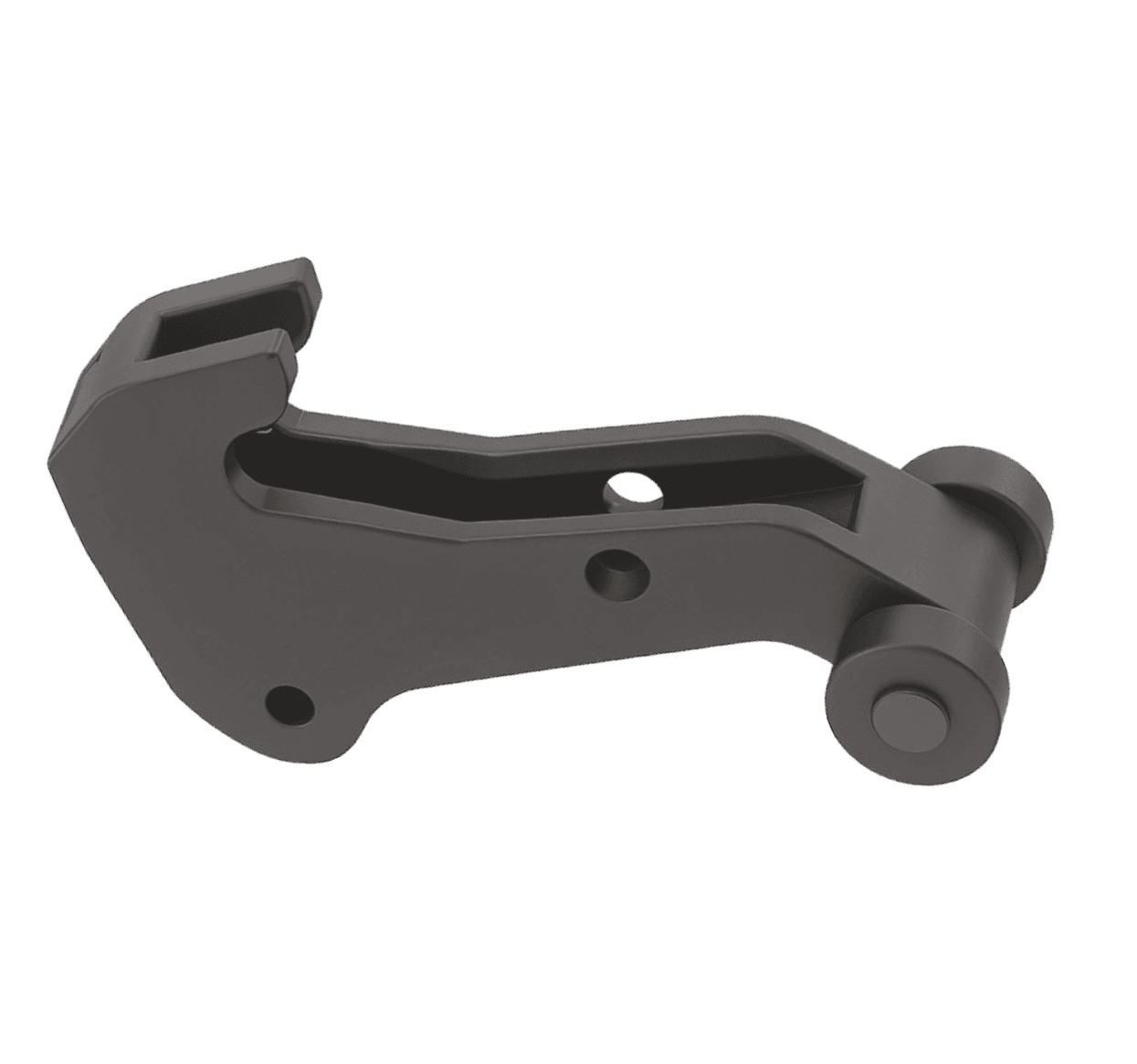

Spanner Holder

Spanner Holder

Securely accommodates open-end and ring-type spanners, allowing precise engagement with specialized fasteners in confined spaces.

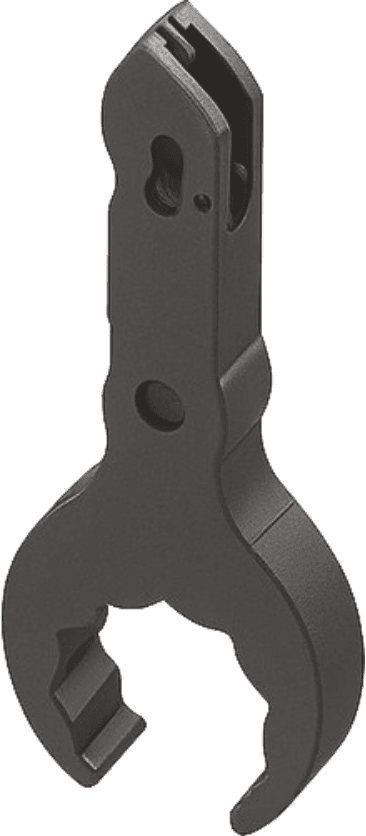

Open End Head

Open End Head

Provides direct access to bolts with limited clearance or obstructions, ensuring efficient torque application where standard sockets cannot be used.

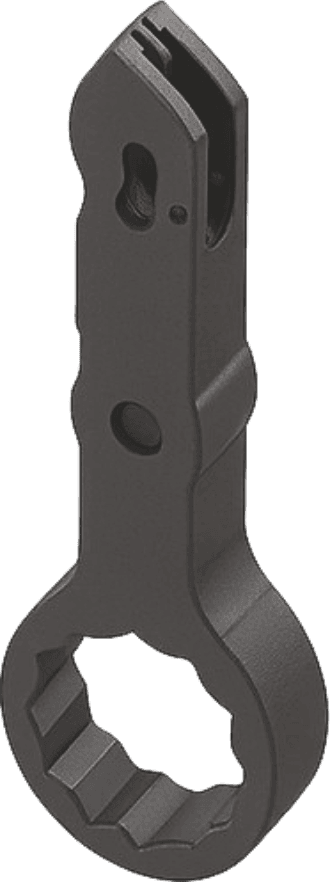

Ring Type Head

Ring Type Head

Ensures full contact and optimal torque transfer on standard hex nuts, reducing the risk of slippage during high-load operations.

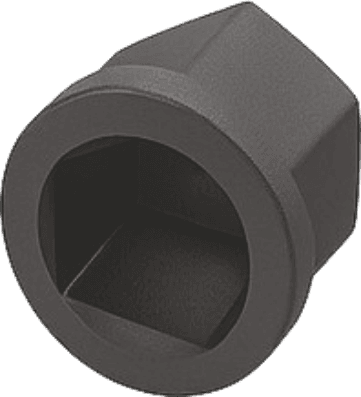

Hex Reducer

Hex Reducer

Allows the use of smaller hex sizes with the same tool, increasing versatility and minimizing the need for multiple wrenches.

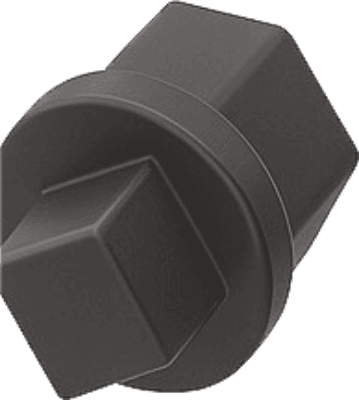

Hex to Square Drive Adapter

Hex to Square Drive Adapter

Expands usability by enabling connection to square drive sockets, supporting a broader range of bolting applications.

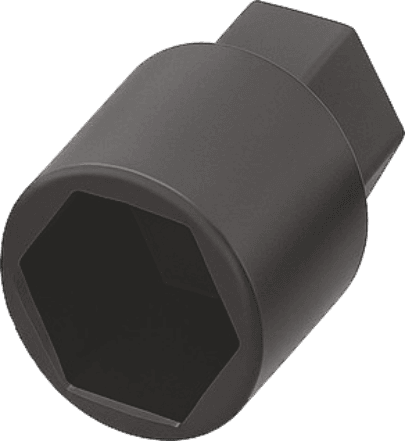

Stack Socket

Stack Socket

Enables effortless access to deep-set bolts, streamlining complex assembly tasks.

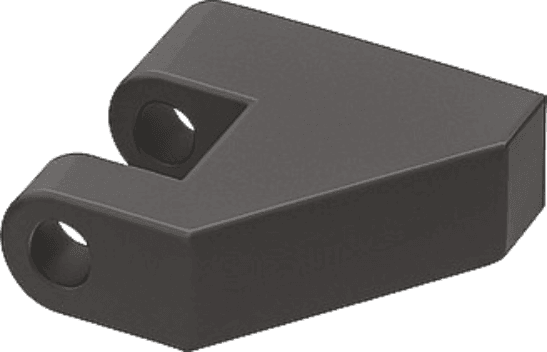

Low Point Reaction Pad

Low Point Reaction Pad

Offers stable and secure reaction support in tight or uneven workspaces, enhancing safety and tool control during operation.

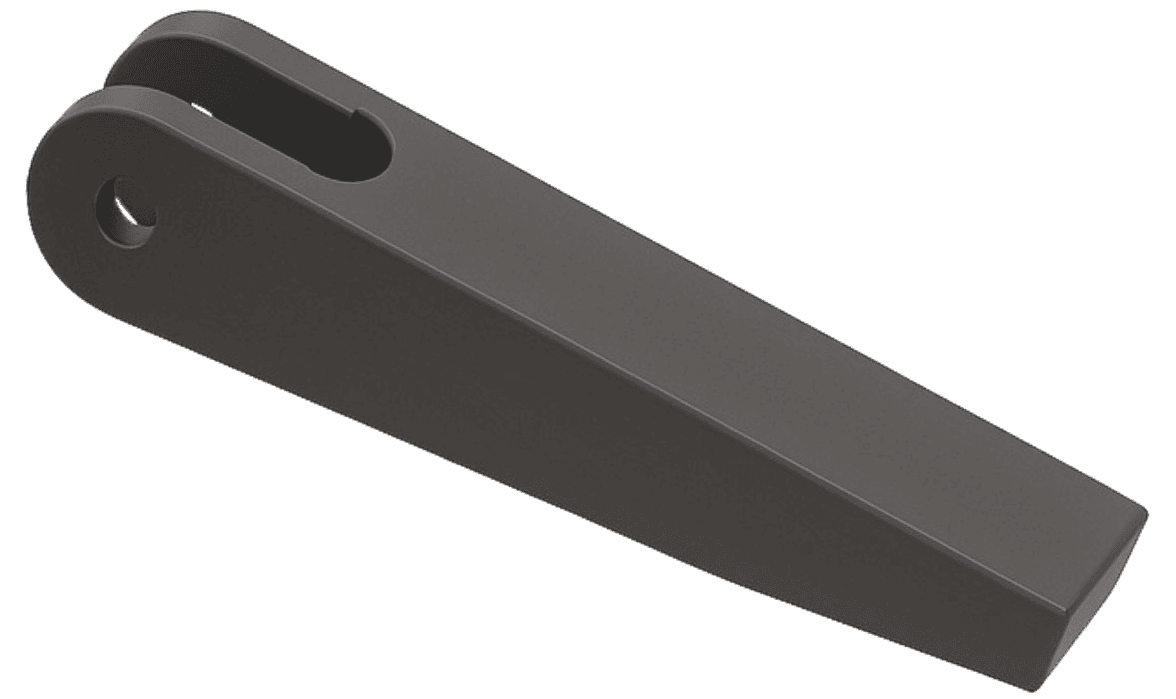

Extended Reaction Arm

Extended Reaction Arm

Provides robust and stable reaction platform in offset or hard-to-reach bolting locations, improving operational adaptability for complex assembly scenarios.

THL Series accessories are purpose-built to enhance tool adaptability, precision, and performance in space-constrained and complex bolting environments. Designed for seamless compatibility, these components ensure optimal fastener engagement, safe torque reaction, and extended application range.

From interchangeable heads and adapters to specialized reaction supports, each accessory enables the tool to operate effectively where standard configurations cannot; supporting high-accuracy, high-load torquing across critical applications.

Right Perspective

Oil & Gas (Up-/Mid-/Down-stream)

Engineered for flanged joints in tight-access offshore and process areas, where clearance is restricted and torque precision is non-negotiable.

Compact Manifold Flanges
Wellhead & X-mas Tree Flanges
Compressor & Separator Skid Assemblies
Riser & Pipeline Connector Joints
Compact Heat Exchanger Units
Storage Tank Nozzle Flanges
Platform Modular Skids
