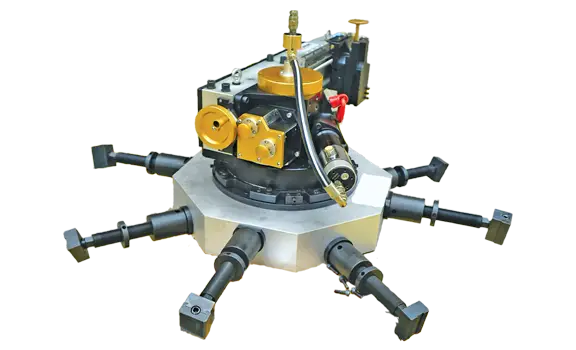

Flange Facing Machine - TTFF Series

Tritorc recognize that flange integrity is achieved through precision machining. Our TTFF series flange facing machine delivers ASME/API code-compliant surface finishes with strict profile and tolerance control; restoring worn or distorted flanges on-site with repeatable accuracy, ensuring leak-free performance without costly disassembly.
- Unlike conventional grinding or lapping, our robust OD/ID mountable design enables quick setup in any orientation horizontal, vertical, or inverted minimizing downtime and operator fatigue.
- Securely clamps onto flange bore or OD with fine-adjustment jacking screws, delivering rigid, vibration-free machining even on warped, corroded, or distorted flanges.
- Engineered to machine smooth, raised face, RTJ grooves, lens rings, and tongue-and-groove profiles with a 360° swivel tool post, delivering full profile versatility.
- Automatic and manual feed systems provide controlled depth of cut (0.05–0.3 mm), ensuring both roughing and finishing operations can be achieved with one setup.
- Compact, modular design allows interchangeable facing arms and tool holders, supporting multiple machining tasks without the need for separate equipment.
- Available with manual, pneumatic, hydraulic, or CNC drive options, ensuring adaptability across offshore platforms, refineries, petrochemical plants, and power stations.
- Performs cold, spark-free machining, eliminating heat-affected zones and ignition risks—making it inherently safe for use in hazardous, gas-sensitive, or explosive environments.
- Equipped with a filter-regulator-lubricator (FRL) system on pneumatic models, ensuring consistent motor performance, longer service life, and safe operation.
- Suitable for on-site flange facing up to 118" OD.
Flange Facing Machine - TTFF Series
Tritorc recognize that flange integrity is achieved through precision machining. Our TTFF series flange facing machine delivers ASME/API code-compliant surface finishes with strict profile and tolerance control; restoring worn or distorted flanges on-site with repeatable accuracy, ensuring leak-free performance without costly disassembly.
- Unlike conventional grinding or lapping, our robust OD/ID mountable design enables quick setup in any orientation horizontal, vertical, or inverted minimizing downtime and operator fatigue.
- Securely clamps onto flange bore or OD with fine-adjustment jacking screws, delivering rigid, vibration-free machining even on warped, corroded, or distorted flanges.
- Engineered to machine smooth, raised face, RTJ grooves, lens rings, and tongue-and-groove profiles with a 360° swivel tool post, delivering full profile versatility.
- Automatic and manual feed systems provide controlled depth of cut (0.05–0.3 mm), ensuring both roughing and finishing operations can be achieved with one setup.
- Compact, modular design allows interchangeable facing arms and tool holders, supporting multiple machining tasks without the need for separate equipment.
- Available with manual, pneumatic, hydraulic, or CNC drive options, ensuring adaptability across offshore platforms, refineries, petrochemical plants, and power stations.
- Performs cold, spark-free machining, eliminating heat-affected zones and ignition risks—making it inherently safe for use in hazardous, gas-sensitive, or explosive environments.
- Equipped with a filter-regulator-lubricator (FRL) system on pneumatic models, ensuring consistent motor performance, longer service life, and safe operation.
- Suitable for on-site flange facing up to 118" OD.

Surface Finishing Capabilities
Tritorc’s TTFF Internal Diameter Mounted Flange Facing Machine is engineered to deliver industry-compliant surface finishes for all critical flange types. We ensure accurate surface characteristics and reliable sealing—achieving gasket integrity and leak-free connections for your industry-specific requirements.

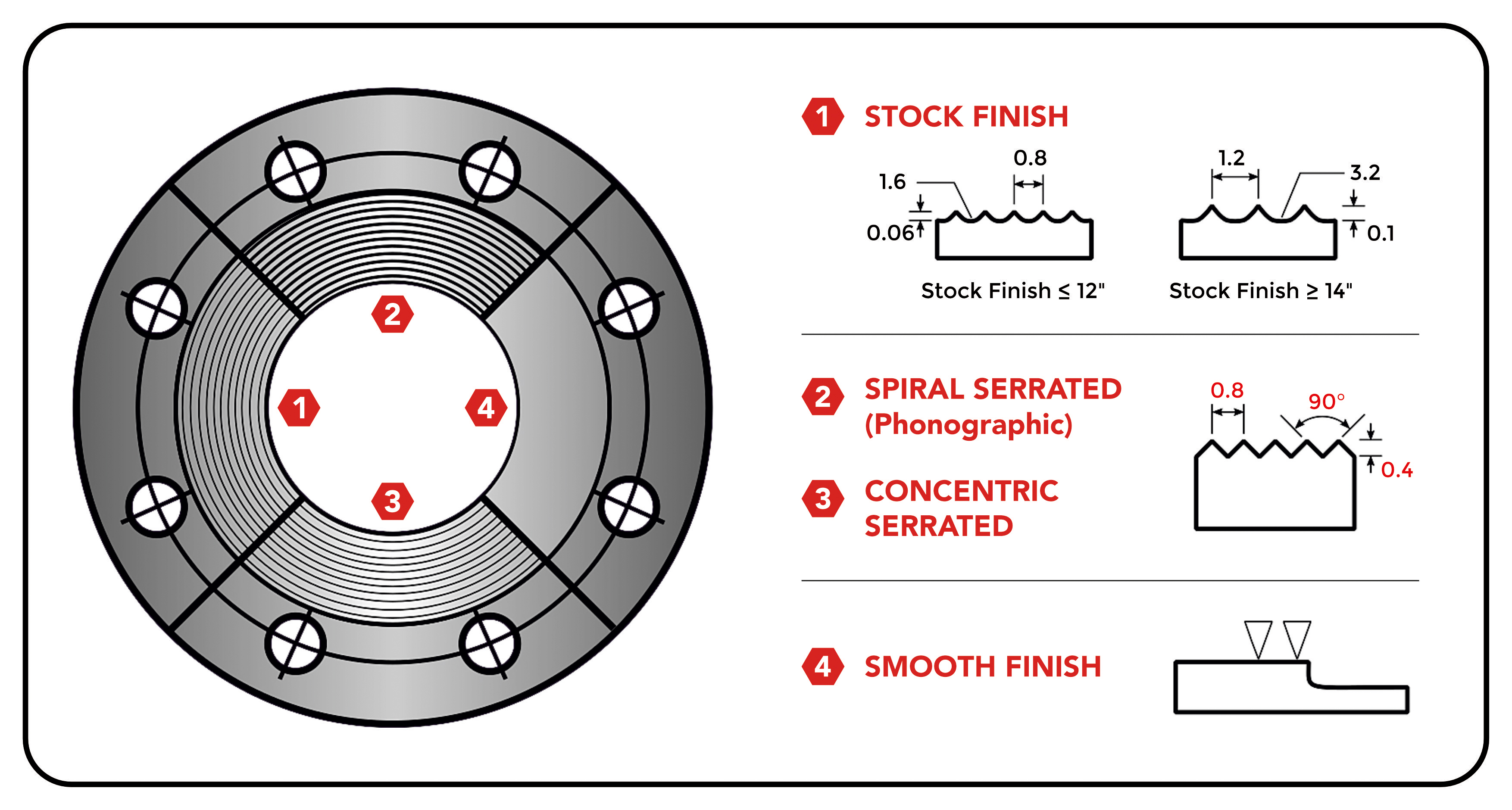

Surface Finish Types & Technical Details:
- Stock Finish: Industry-standard stock finish with controlled roughness.
- For flanges ≤12″ diameter: tool radius 1.6mm, feed rate 0.8mm/rev, groove depth 0.06mm.
- For flanges ≥14″ diameter: tool radius 3.2mm, feed rate 1.2mm/rev, groove depth 0.1mm.
- Spiral Serrated (Phonographic) Finish: Continuous spiral groove; tool tip angle 90°, groove depth 0.4mm, feed rate (pitch) 0.8mm/rev.
- Concentric Serrated Finish: Multiple concentric grooves; tool tip angle 90°, groove depth 0.4mm, feed rate 0.8mm/rev.
- Smooth Finish: Fine, uniform surface for soft or composite gaskets—minimizes waviness, reduces embedment, and ensures even compression where smoother interfaces are required.
