Hydraulic Bolt Tensioners: Types, Applications and Essential Factors
Hydraulic bolt tensioners are crucial tools for industrial applications seeking out for accuracy and consistency. These instruments utilize hydraulic pressure to load a bolt in a controlled manner and provide the necessary clamping force. This process is more precise than traditional methods of tightening bolts based on torquing such as manual fastening. Tritorc is a growing leader in bolting solutions, offering several kinds of hydraulic bolt tensioners to diverse industries. In this blog, we will be discussing the various types of hydraulic bolt tensioners produced by Tritorc, their uses and consideration while choosing the right tensioner for a project.

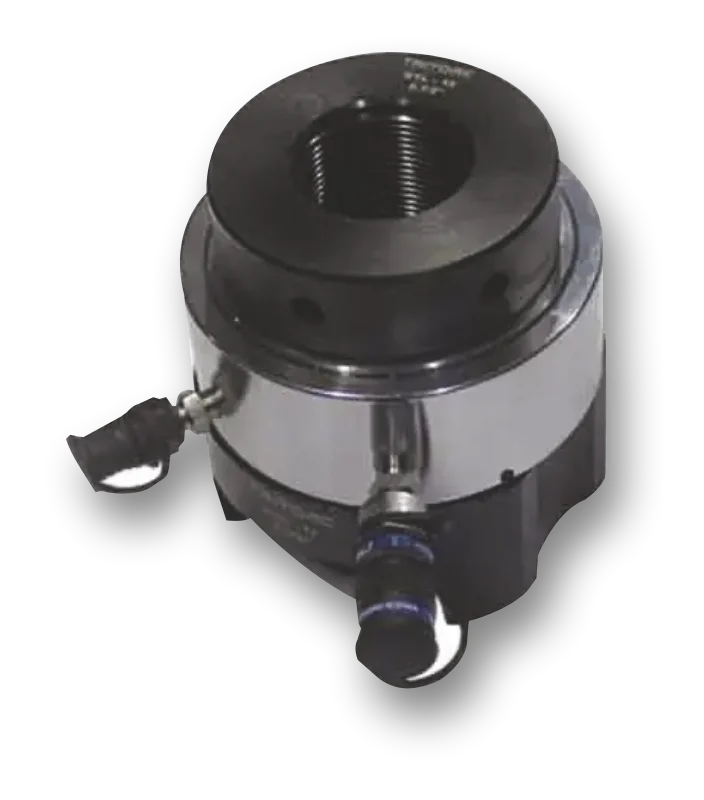

What are Hydraulic Bolt Tensioners?
Hydraulic Bolt tensioners are the tools that utilizes hydrostatic stress on a threaded stud by torquing the nut against predetermined load. This guarantees preciseness and accuracy during tightening which is crucial for maintaining joint integrity at varied operational conditions without relaxation of bolts. They are highly applicable in high stress zones like oil and gas fields, power plants or heavy machinery sectors.

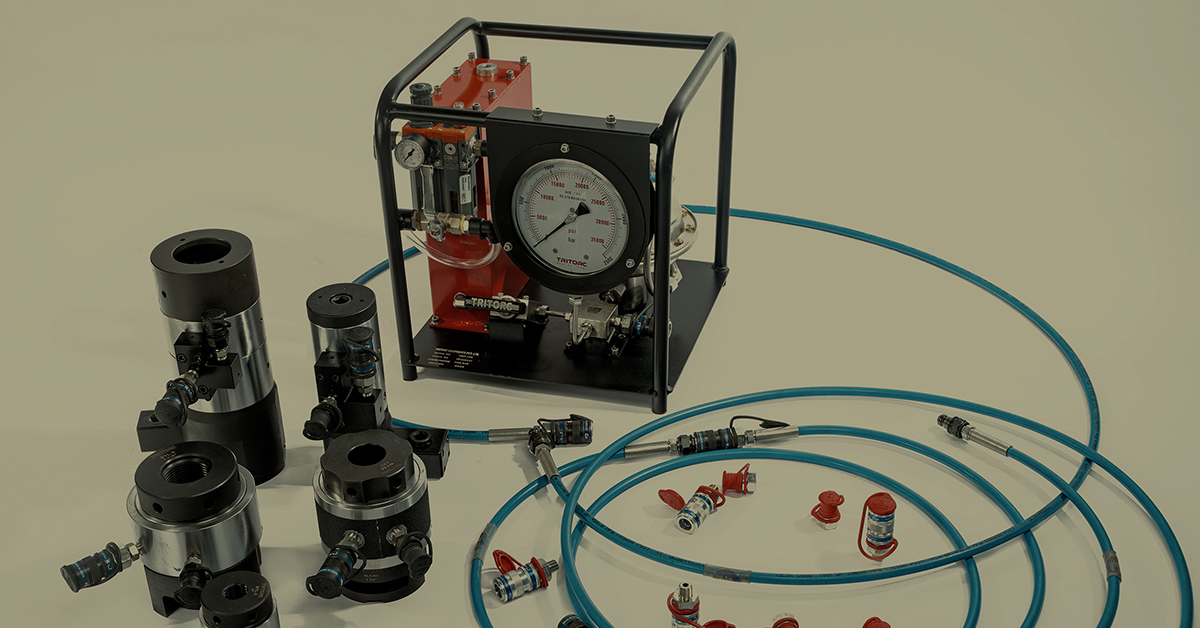

Types of Hydraulic Bolt Tensioners

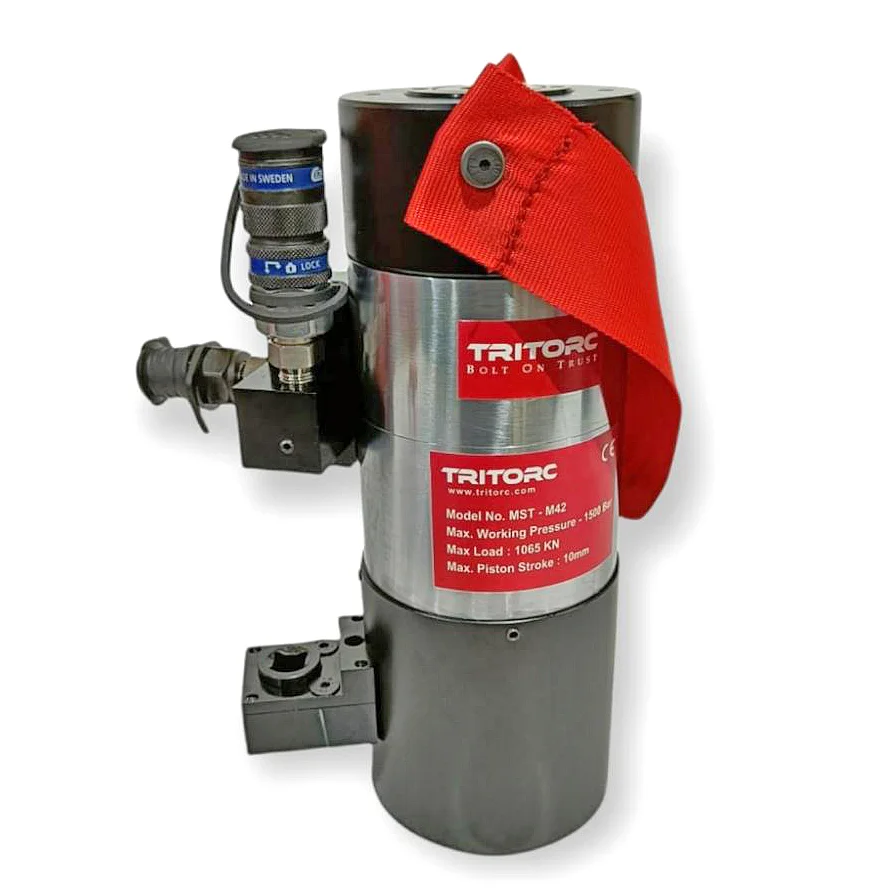

High tensioning force applied on the bolts are the reason multi-stage tensioners are designed. Their ability to produce the desired load through numerous hydraulic phases makes them perfect for heavy-duty applications involving very large bolts.
High Load Capacity: Able to exert a considerable amount of force on big bolts.
Precision: Assures consistent and precise tensioning at various phases.
Durability: Capable of withstanding hard industrial settings.
Applications:
Large-scale equipment
Large-scale building initiatives
Pipes for gas and oil

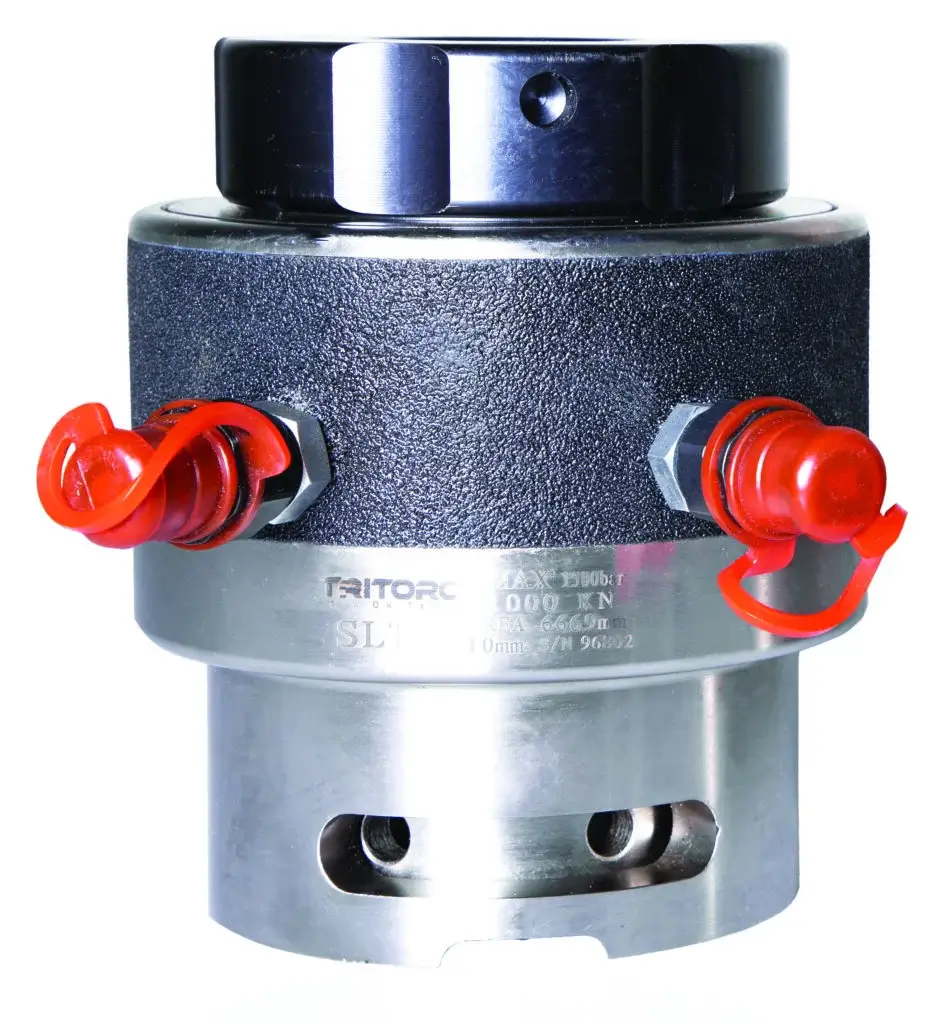

When the hydraulic pressure is removed, the spring mechanism in spring return tensioners automatically retracts the tensioner piston. This design streamlines the tensioning procedure to maximize operating efficiency.
Ease of Use: Reduces manual labor and simplifies operations.
Efficiency: Tensioning goes more quickly with automatic retraction.
Versatility: Fits a variety of bolt sizes and kinds.
Application
Energy production
Manufacturing sectors
Upkeep and restoration tasks

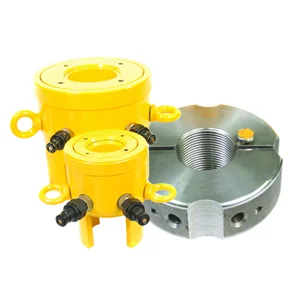

3. SubSea Tensioners
SubSea tensioners are specifically engineered for submerged uses, including offshore gas and oil rigs. These tensioners are frequently utilized in conjunction with remotely operated vehicles (ROVs) and are built to endure the challenging circumstances of underwater environments.
Durability: Constructed from materials that can withstand corrosion and withstand submerged circumstances.
Dependability: Guarantees accurate tensioning in difficult underwater conditions.
Compatibility: Works with different kinds and sizes of bolts.
Applications
Platforms for offshore oil and gas
Underwater construction initiatives
Pipes submerged in water

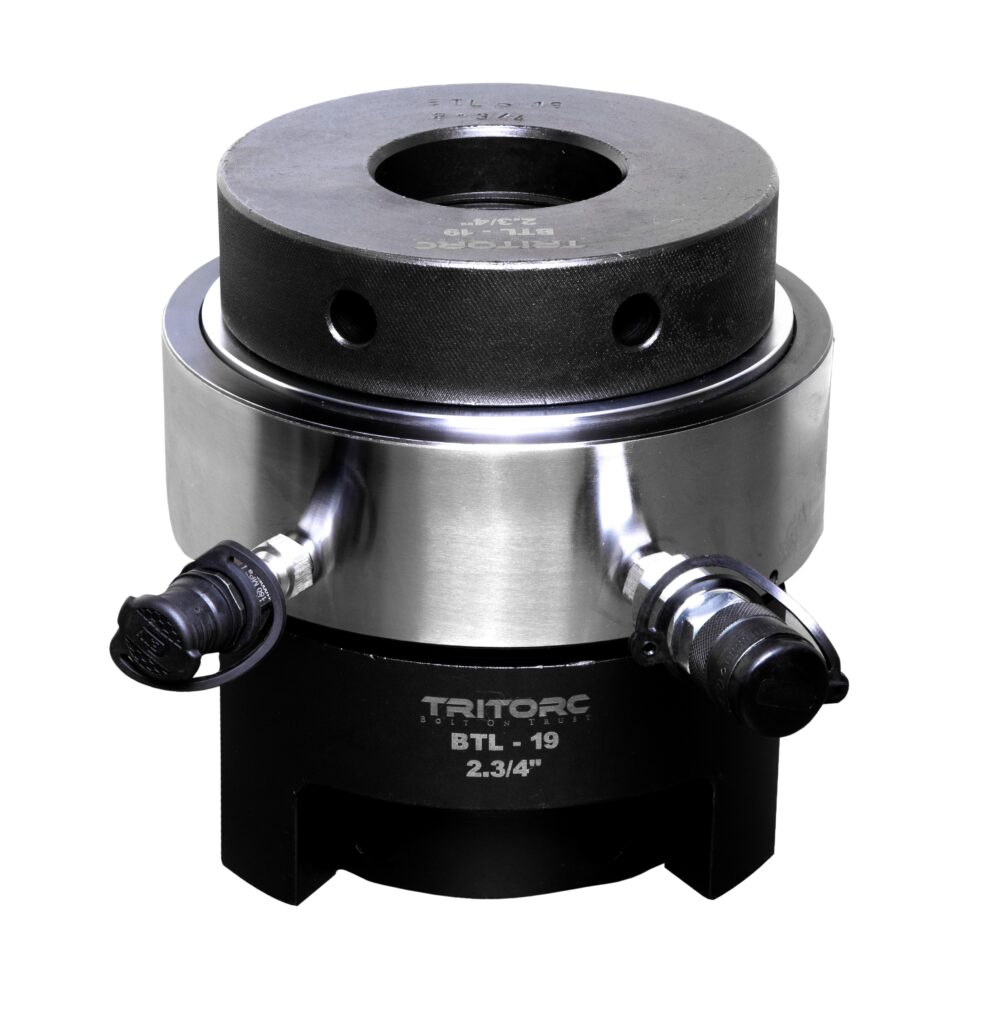

On the top of the bolt, where the nut is placed, top side bolt tensioners are employed. In situations where there is restricted access to the bolt end, these tensioners are perfect.
Easy to Use: Easy to set up and use.
Precision: Ensures uniform bolt load by precise tensioning.
Versatility: Fits a variety of bolt sizes and applications.
Application:
Flange couplings
Vessels under pressure
Bolting in general industry

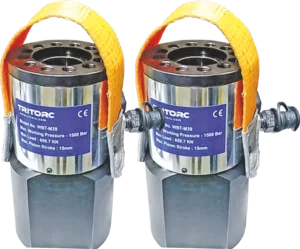

5.Wind Turbine Foundation Bolt tensioners (WBT Series)
Wind Turbine Foundations Bolt tensioners (WBT Series) are made especially for the demanding uses of wind turbine foundations. Through accurate and reliable foundation bolt tensioning, they guarantee the structural integrity of wind turbines.
Precision: Assures precise tensioning, which is necessary for wind turbine constructions to be stable and safe.
Durability: Designed to survive the environmental factors present at wind turbine locations.
Efficiency: Shortens installation and maintenance times by streamlining the tensioning procedure.
Application
Foundations for wind turbines
Installations of renewable energy
Hydraulic Bolt Tensioner Applications
In many different sectors where accurate and dependable bolting is necessary, hydraulic bolt tensioners are essential.
- Gas and Oil: Connectivity at flanges, pipelines, and other vital points.
- Upholding the structural integrity of generators, turbines, and other machinery is part of power generation.
- Heavy Machinery: Ensuring huge bolts in building projects and heavy machinery are reliably tensioned.
- Manufacturing: Making sure that assembly and maintenance procedures are done precisely.
- Subsea Operations: Providing strong answers for submerged bolting needs.
- Renewable Energy: Guaranteeing the steadiness and security of the foundations supporting wind turbines and other renewable energy installations.
Benefits and ChallengesAccuracy:
Hydraulic bolt tensioners provide precise and consistent tension, reducing the risk of bolt loosening and ensuring joint integrity.
- Precision: Hydraulic bolt tensioners ensure accurate and consistent tension, reducing the chance of bolts coming loose and maintaining joint integrity.
- Productivity: These tools simplify the tensioning process, saving time and minimizing manual labor.
- Versatility: Suitable for a wide range of bolt sizes and types across various industrial uses.
- Durability: Designed to endure challenging conditions, including underwater and windy environments.
Key Factors
Complexity: Certain types, like multi-stage tensioners, may be complex and demand specialized expertise for maintenance.
Cost: Initial investment can be significant for certain tensioning equipment, particularly those tailored for specialized tasks such as subsea operations and wind turbines.
Maintenance: Regular maintenance is necessary to uphold optimal performance and extend the equipment’s lifespan.
Solutions to Challenges
Complexity
For dealing with the complex engineering and use of multi-stage tensioners and other advanced models:
- Training: Operators needs to be trained before operating the and maintaining the equipments
- Technical Support: seeking out technical support can minimize the troubleshoot and minimize tension errors for maintenance.
Cost
To mitigate the high initial cost of hydraulic bolt tensioners:
- Cost-Benefit Analysis: A complete cost-benefit analysis can set up the long-term savings, which results in improved efficiency and reduced downtime.
- Leasing Options: Considering leasing or rental options can make high-end tensioners more affordable. Seeking out leasing or rental options can make bolt tensioners more cost productive.
Maintenance
To ensure regular and effective maintenance:
Regular Maintenance: Keeping a regular check on the maintenance of the tensioners keeps them in optimal working condition.
Spare Parts: Having an inventory or a stack of spare parts can help in immediate replacement of the work part and minimize time delay.
Conclusion
In industrial applications, hydraulic bolt tensioners play an important role in ensuring the safety and reliability of bolted joints. It is necessary to understand the different types of hydraulic bolt tensioners and their specific uses to make the right choice for your project. Tritorc provides a diverse selection of bolt tensioners manufactured to meet various industrial requirements.
Opting for the appropriate bolt tensioners can enhance the safety, efficiency, and dependability of your sealing operations. For additional details and to view Tritorc’s range of hydraulic bolt tensioners, get in touch with Tritorc Equipments.
